Plastic Deck Plans

Specifications

Total Area 616.25 SQ Ft
Live Load (Deck & Stairs) = 60 PSF
Footer Depth = 36"
Beam Size 2-2x10
Deck Beams Internal
Joist Size 2x10
Joist Spacing 12" OC
Post Size 4x4
Post Setting On top of footers
Decking 1x6 T&G (extruded plastic)
Decking Spacing Zero
Rail Section Size 4.5' to 5.5' varies
Rail Cap 1x6 (extruded plastic)
Rail Spindles 2x2 (extruded plastic) chamfered
Deck Screws Stainless
Fascia Size 1/2x8
Hot Tub Access Panel 7'6" x 2'6" to left of tub (tub is actually 7'6" x 7'6")
Hot Tub Footer Detached from deck, on gravel & PT 4x4 pad

Drawings from 3D Deck

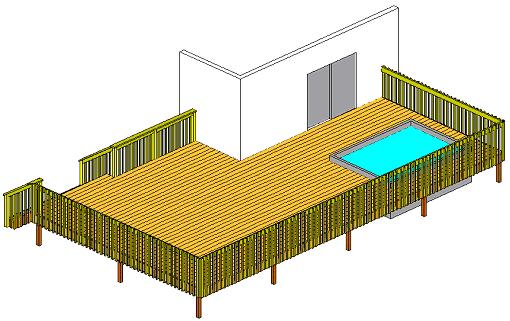

Deck-Plans1

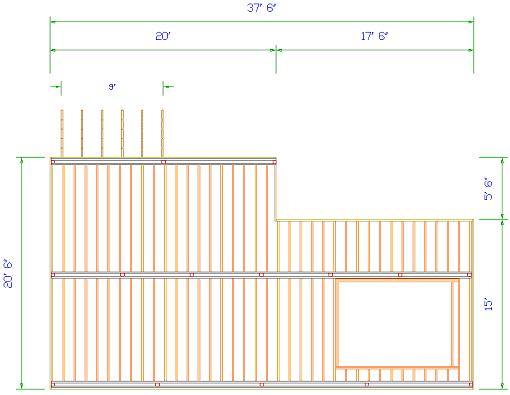

Deck-Plans2
